FR Series
Specialized liner handling systems designed to handle the most challenging liner installations.

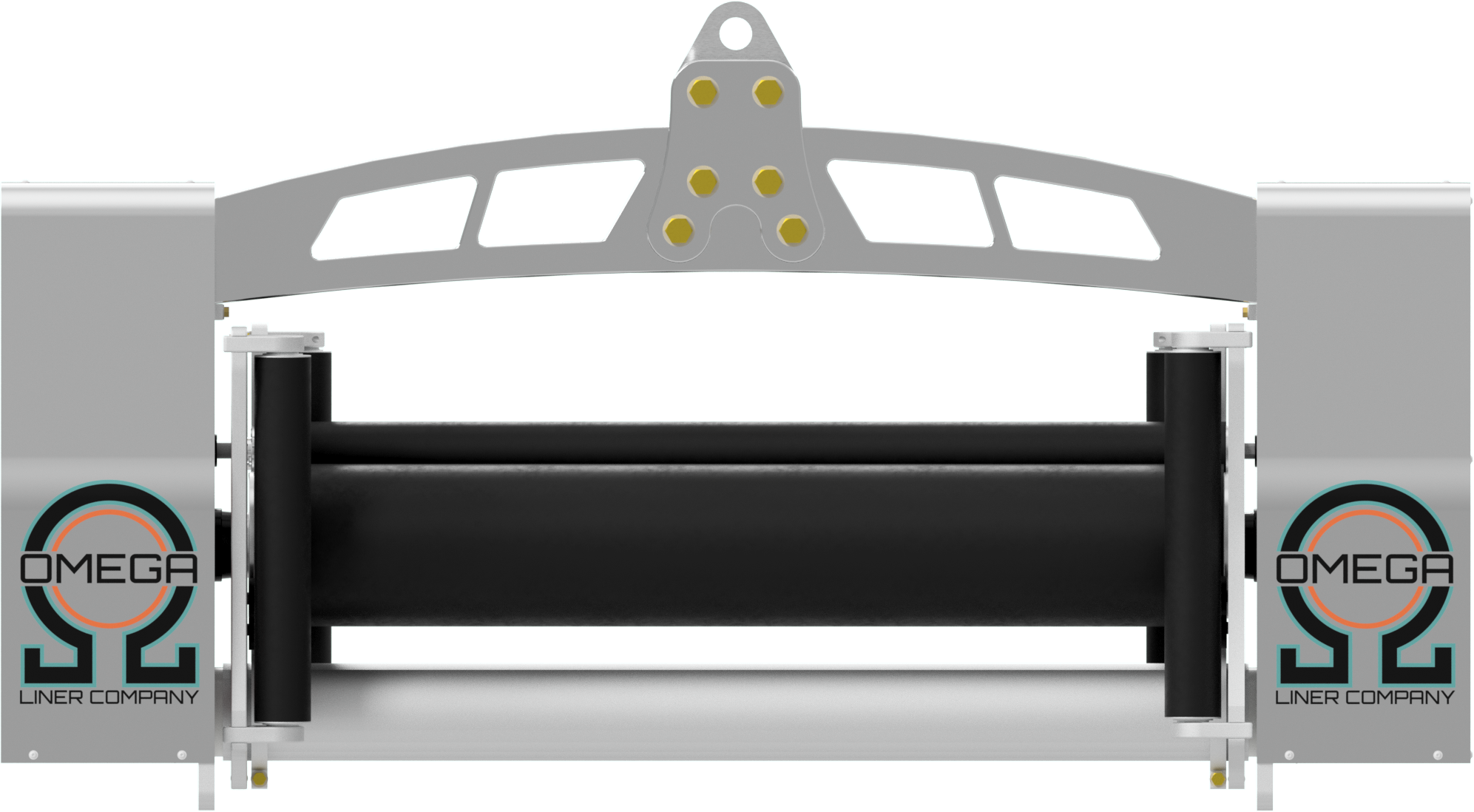

One of the first liner handling machines to hit the market was the FR Series powered Feed Roller attachment from Omega Liner Company, Inc. These machines are built from lightweight, aerospace-grade aluminum, with a highly flexible design that permits operation in the most challenging terrains, using commonly available equipment. One of the key design features of the FR Series is its ability to be converted to a wider roller package in a short period of time using standard shop tools. The FR1400 supports liner sizes up to 36” and up to 72” with the optional FR2800 extension package.
Features
• Patented design
• Aircraft grade aluminum
• Variable speed drive
• 40’ Wired remote
• Sealed to dust and water
Electrical System
• 240v
• 5,000 watt
• Built-in 50’ cord
• Area floodlighting
Capacities
FR1400
• 36” Flat liner
• 7,500lb working load
FR2800
• 72” Flat liner
• 5,000lb working load
The FR1400 Powered Feed Roller has a 7,500lb load capacity, weighs less than 1,000 lbs, is small enough to fit in the bed of a pickup truck, and runs off standard worksite generators. All these characteristics have made it a highly versatile machine, optimizing the liner installation process for contractors and improving liner installation efficiency.
In the last several years, the FR1400 has found use with a variety of installers and has allowed them to complete difficult projects with ease and confidence. In some circumstances, the jobs may not have been possible using conventional conveying equipment and techniques.
Available for daily, weekly, and monthly rental. Please reach out for a project-specific quote.
